SC - Simple Sockets

Foundry v13-v14System D&D 5eFree

SC - Simple Sockets

Overview

SC - Simple Sockets adds a socket workflow to D&D 5e items in Foundry.

The module treats configured loot items as gems, lets compatible host items receive socket slots, and then transfers gem behavior into the host item when a gem is inserted.

What the module currently covers:

drag-and-drop gem socketing
configurable socketable host item types
gem definitions based on loot subtypes
automatic transfer of Active Effects
automatic mirroring of Activities
optional gem combat data in +Details
per-slot descriptions, tint colors, visibility, and JavaScript conditions
socket feedback on item sheets, actor inventories, activity lists, and the damage roll dialog
support for the default dnd5e item sheet and Tidy5e Sheet

Compatibility and Installation

This module is free.

Install it through Foundry with this manifest URL:

code

https://github.com/Shattered-Codex/sc-simple-sockets/releases/latest/download/module.json

Compatibility:

Foundry VTT v13 and v14
system: dnd5e
recommended dependency: libWrapper
optional sheet integration: Tidy5e Sheet

After installing:

Enable SC - Simple Sockets in your world.
Open Configure Settings > Module Settings > SC - Simple Sockets.
Configure socketable host item types.
Configure which loot subtypes count as gems.
Create or import a few test gems.
Test the workflow on one host item before expanding your content library.

Settings and Setup

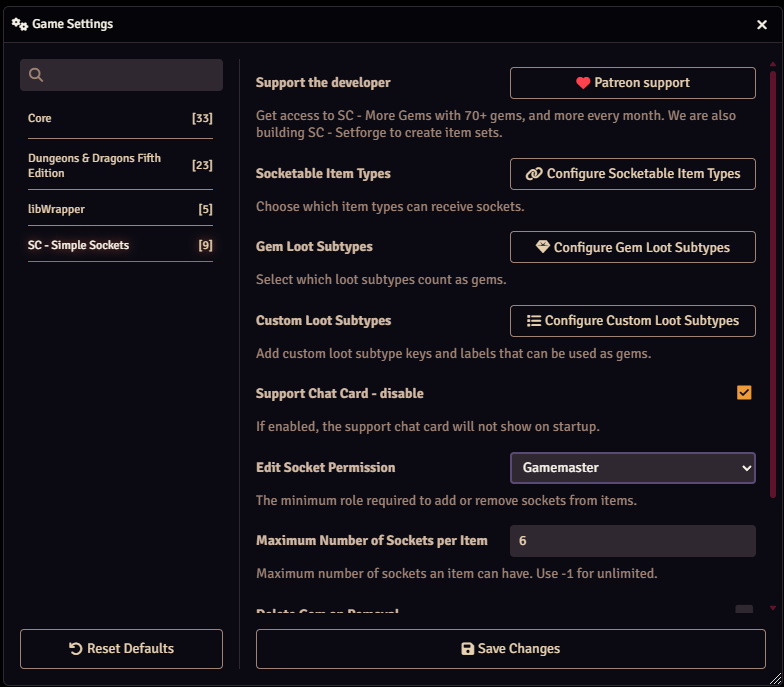

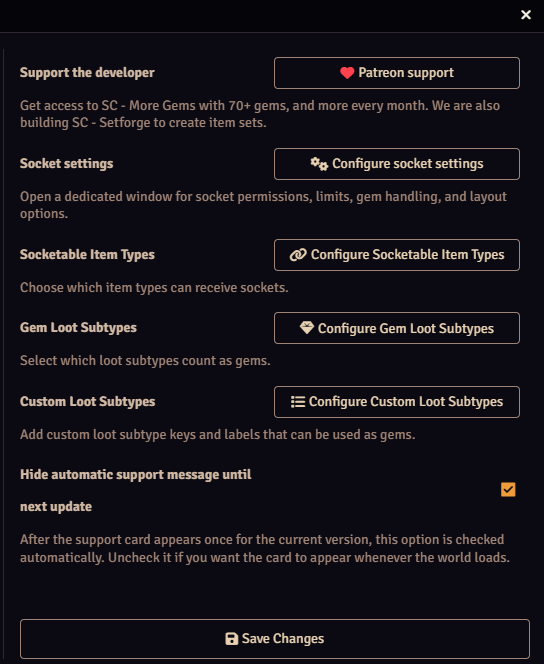

Most setup starts in Configure Settings > Module Settings > SC - Simple Sockets.

The settings hub is the entry point for socket rules, socketable item types, gem subtype setup, documentation, and support actions.

Main entries:

Socket settings
Configure Socketable Item Types
Configure Gem Loot Subtypes
Configure Custom Loot Subtypes
Documentation
Support the developer

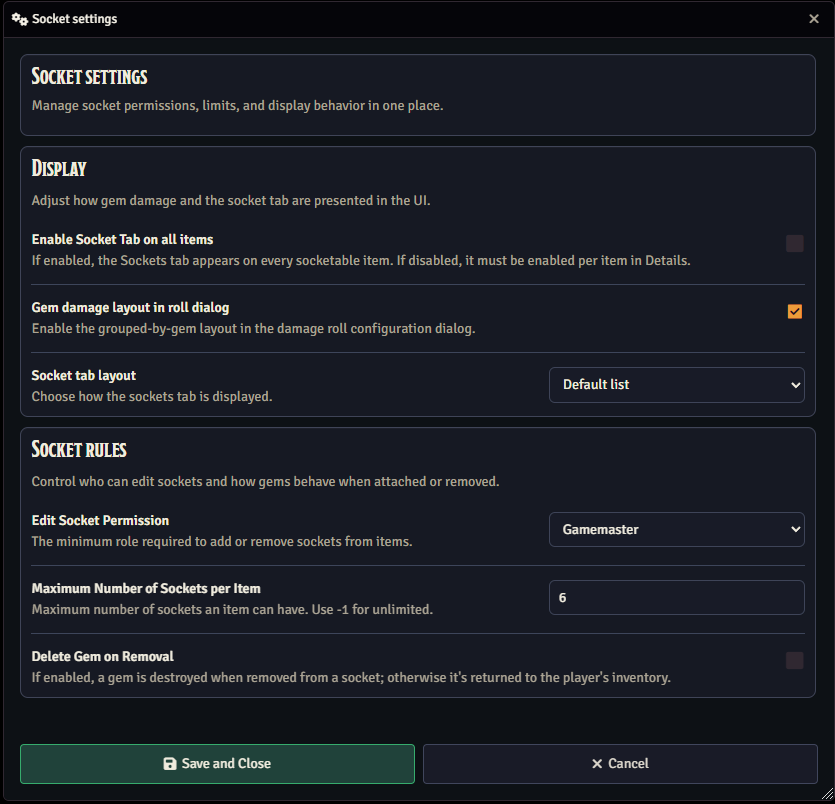

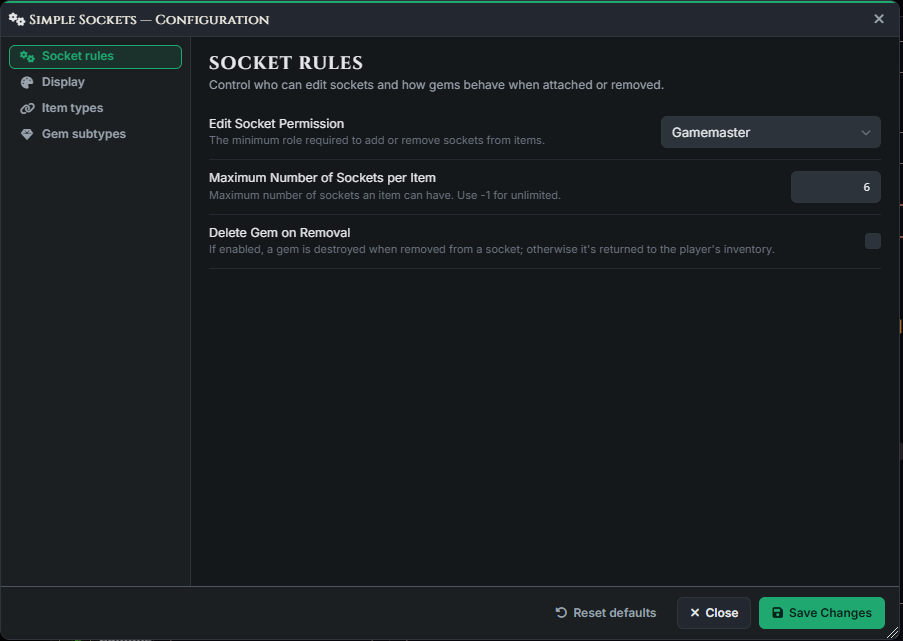

The dedicated Socket settings window groups the main runtime behavior.

This window controls permissions, socket limits, gem removal behavior, and how the socket UI is presented.

Main rules and display settings:

Setting	What it controls
Edit Socket Permission	The minimum Foundry role required to add or remove sockets.
Maximum Number of Sockets per Item	The socket limit for each item. Use `-1` for unlimited sockets.
Delete Gem on Removal	Whether unsocketing destroys the gem or returns it to inventory by default.
Enable Socket Tab on all items	Whether every socketable item shows the Sockets tab automatically.

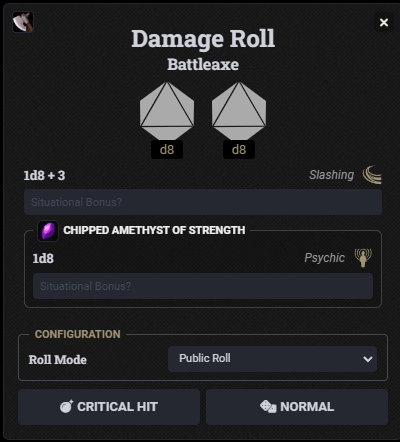

Gem damage layout in roll dialog	How extra gem damage is grouped in the dnd5e damage roll configuration dialog.

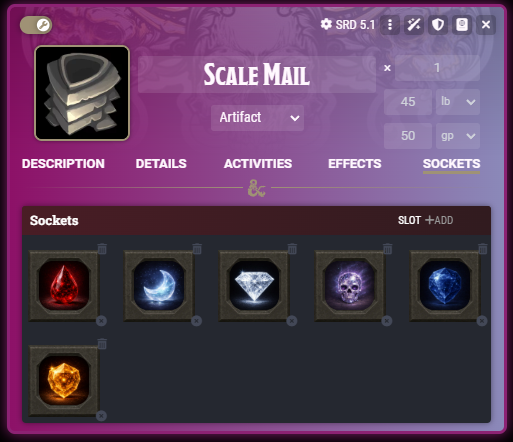

Socket tab layout	Whether the Sockets tab uses the default list layout or the grid layout.

The gem damage layout setting currently supports four modes:

Group by gem
Group by damage type
Group by gem type
Group by damage type with badges

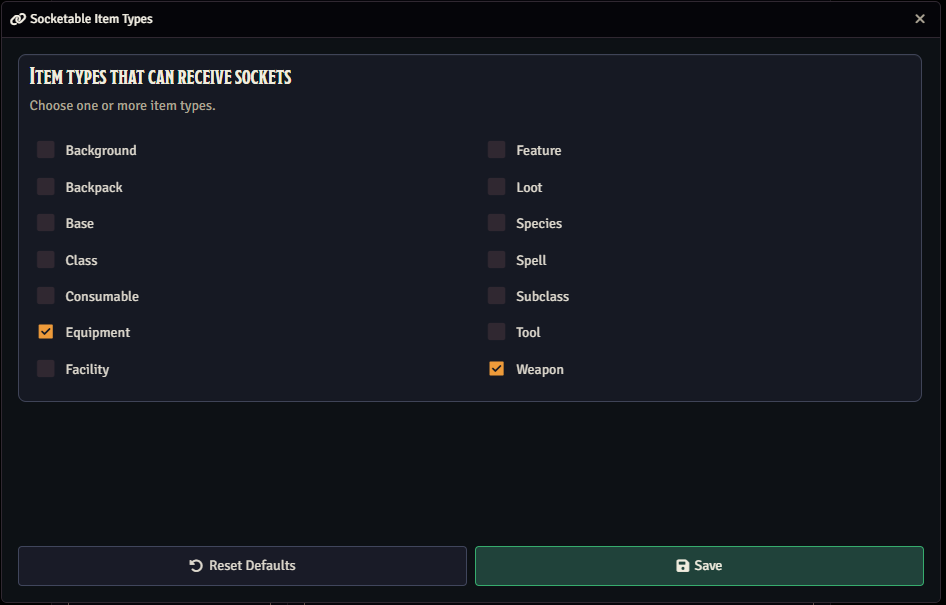

Socketable host item types are configured separately.

Socketability is controlled globally, so you decide once which item types can receive sockets.

By default, the module allows sockets on:

weapon
equipment

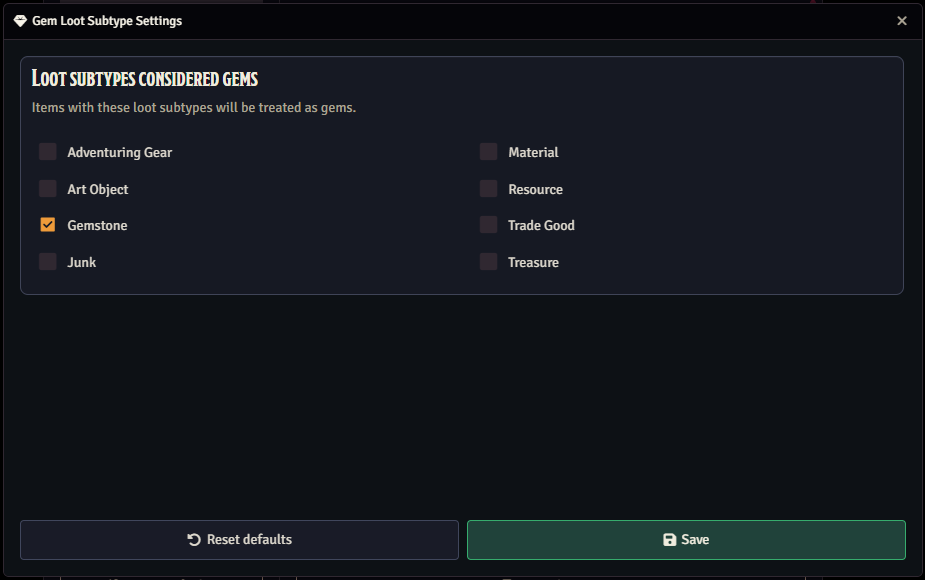

Gem identification also starts from a global rule.

Loot items are treated as gems when their subtype matches the configured gem subtype list.

By default, a gem is:

an item of type loot
with subtype gem

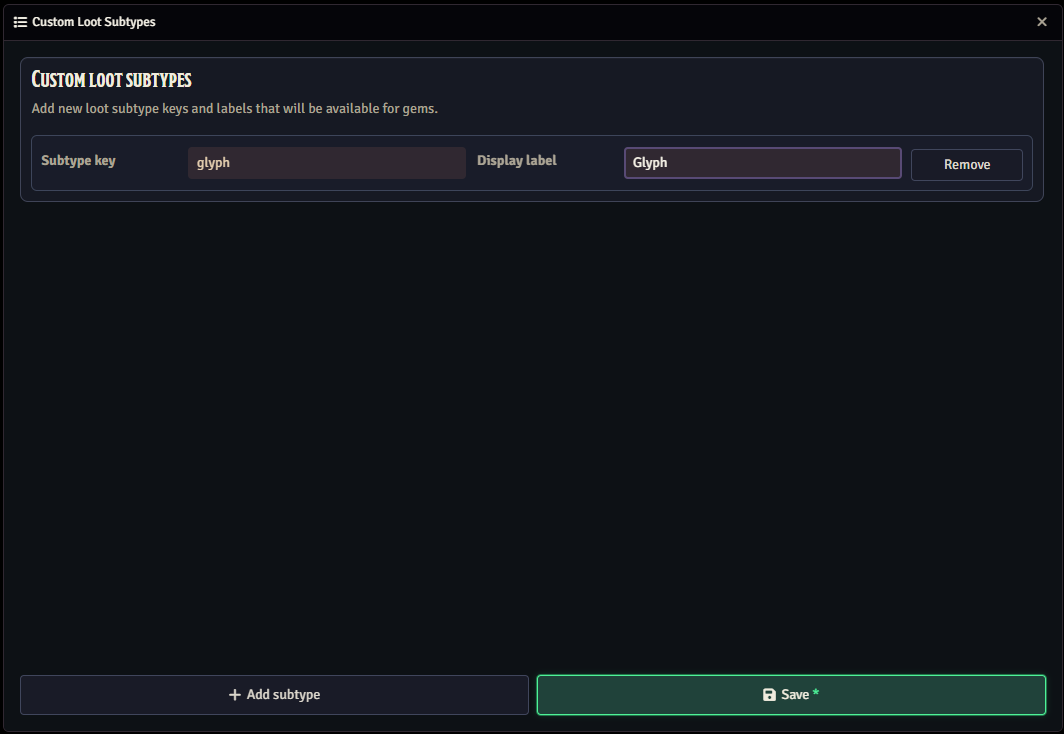

If you want alternate gem families such as runes or shards, add custom loot subtypes.

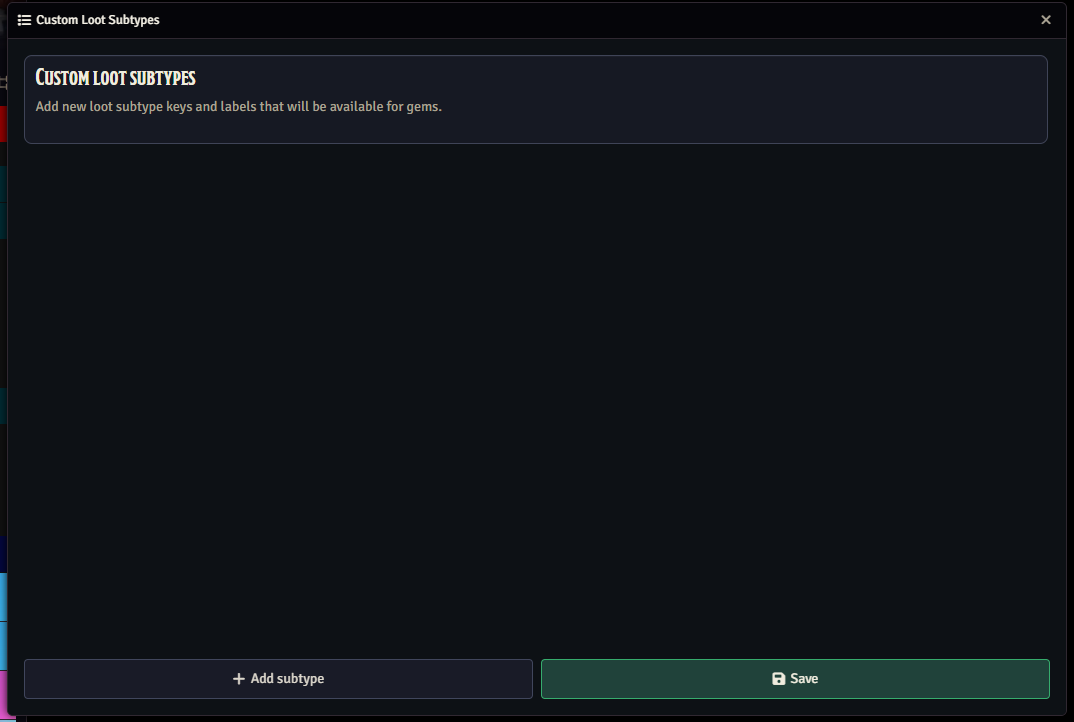

Custom loot subtypes let you extend the gem system without introducing a new Foundry item type.

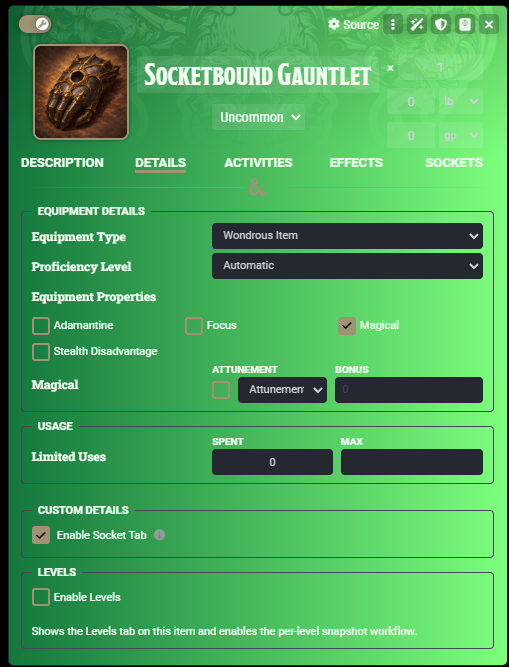

If Enable Socket Tab on all items is disabled, an eligible item can still opt in from Details.

This per-item toggle matters when you want sockets on selected items only instead of every valid host item.

Build Gems

Gem authoring uses normal dnd5e loot items plus the module's extra controls.

Each gem can define:

its accepted loot subtype
one or more descriptions

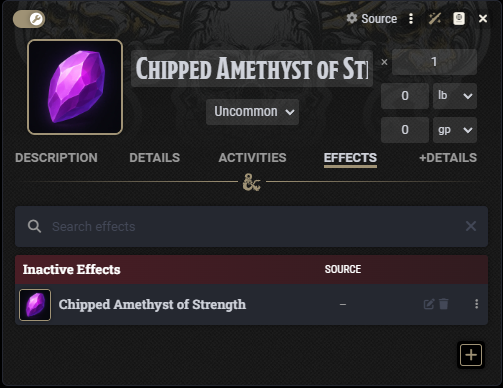

Active Effects
Activities
+Details combat data

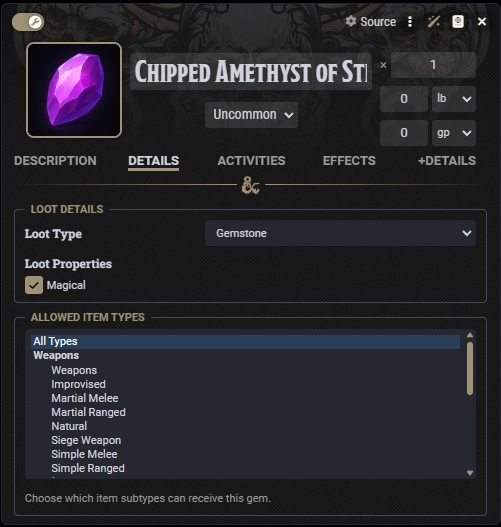

Allowed Item Types

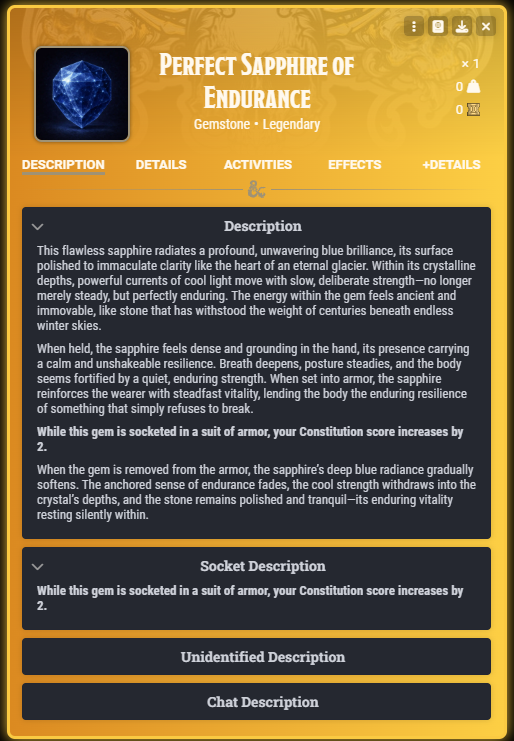

Descriptions

A gem can carry standard description content plus a dedicated socket description used after insertion.

1 / 5

Practical gem behavior:

gem Active Effects are applied to the host item

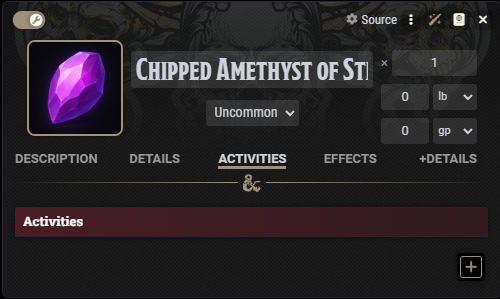

gem Activities are mirrored to the host item

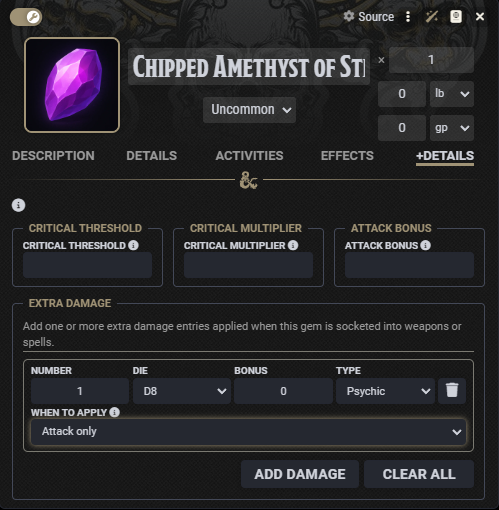

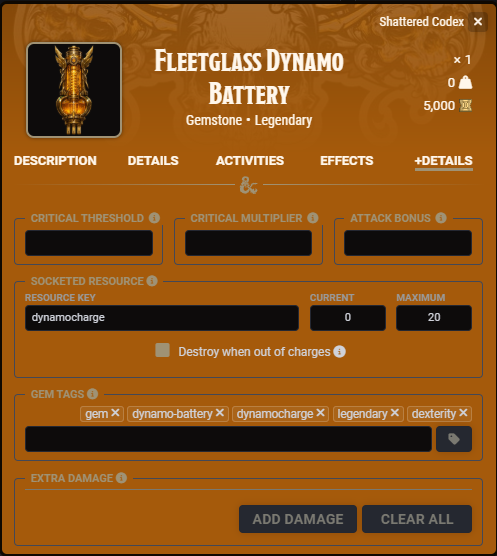

gem +Details data can add extra damage and attack modifiers
gem host restrictions are checked before insertion

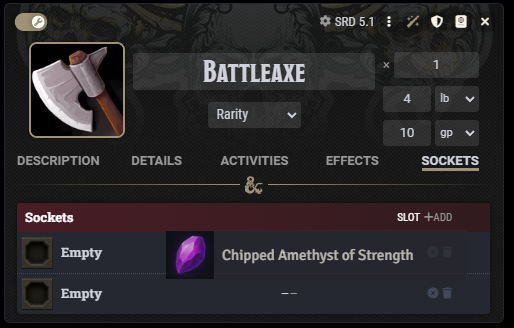

Socket Items

Once your world has valid gems and valid host items, the main socketing workflow is straightforward:

Open a compatible host item.
Open the Sockets tab.
Add one or more empty slots.
Drag a gem into an empty slot.

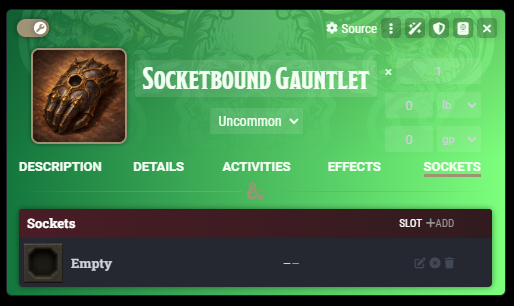

List layout

The default list layout is more explicit and easier to inspect slot by slot.

1 / 3

At insertion time, the module validates:

whether the dropped item is a configured gem
whether the host item type is socketable
whether the gem allows that host item type or subtype
whether the slot's custom condition accepts the gem

When a gem is removed, the result depends on the active removal mode:

if gem deletion is enabled, the gem is destroyed
otherwise the gem is extracted back into inventory

That behavior can come from the global Delete Gem on Removal setting or from a per-slot override.

Holding Shift while removing a gem or deleting a slot skips the confirmation prompt.

Slot Settings and Slot Conditions

Each socket can carry its own configuration instead of behaving like every other slot on the item.

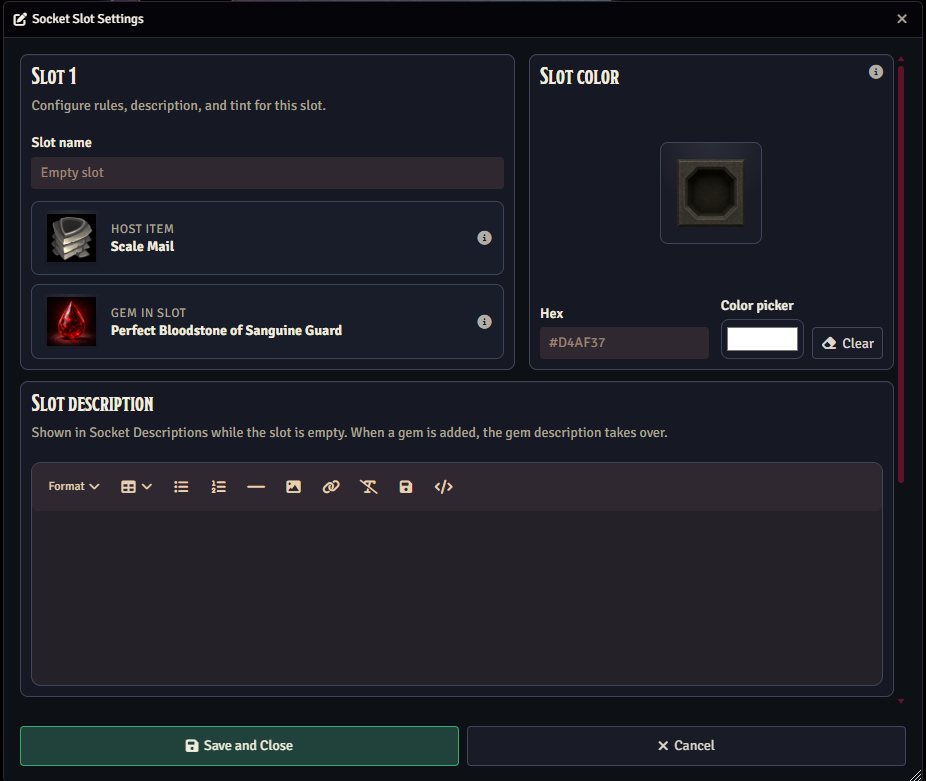

Slot settings

Each slot can store its own name, empty-slot description, tint, visibility, and removal behavior.

1 / 3

Per-slot settings currently include:

Setting	What it does	Notes
Slot name	Overrides the visible slot name.	If left blank, the slot falls back to `Empty` while empty or the gem name while filled.
Hide slot	Hides the slot from non-GM users.	The empty-slot description is also GM-only while the slot is hidden.
Delete gem on removal	Overrides the normal gem-removal behavior for that slot.	If enabled, removing a gem from that slot deletes it even when the global setting would normally return it.
Slot condition	Runs an extra JavaScript rule before a gem can be inserted.	An empty condition means there is no extra slot-specific restriction.
Slot description	Shows custom text for that slot while it is empty.	Once a gem is inserted, the gem's own socket description takes over.

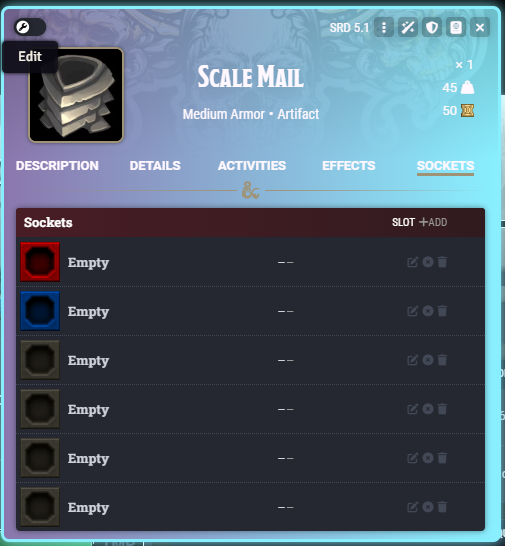

Slot color	Applies a custom tint to the empty socket frame.	This is visual only and affects the empty socket state, not the inserted gem.

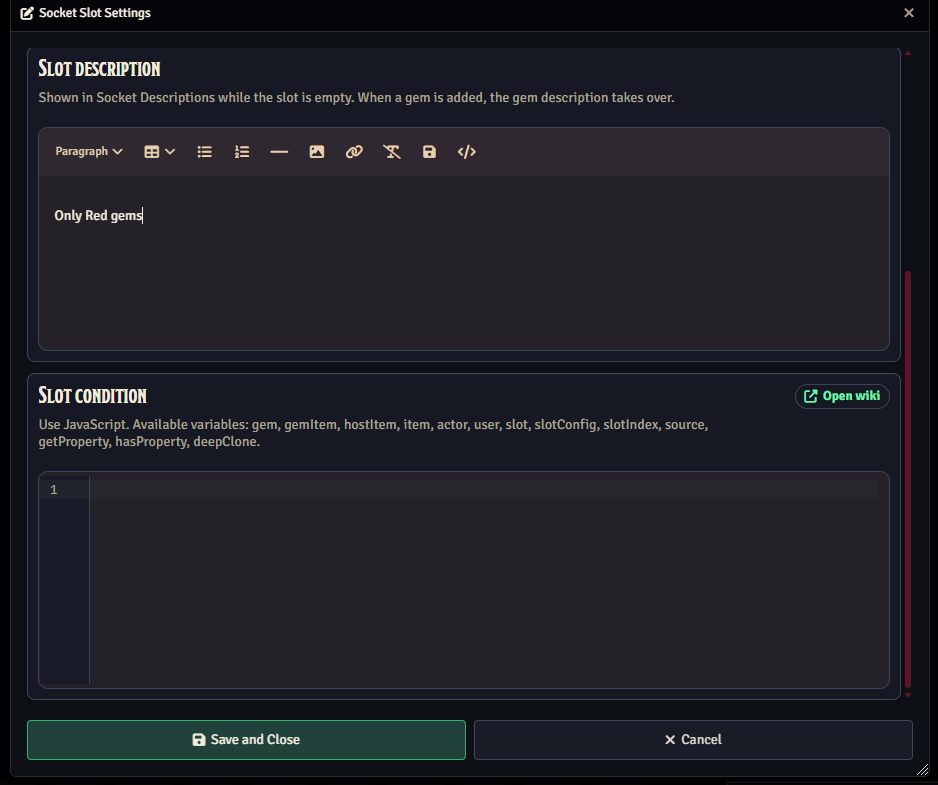

Slot Condition

Slot condition is the advanced rule field for deciding whether a specific gem can enter a specific socket.

If the field is empty, the slot accepts any gem that already passed the module's normal checks.

If the field contains code:

a truthy result allows the gem
a falsy result blocks the gem
invalid code or runtime errors also block the gem and show a warning

Both styles work:

gem?.name?.toLowerCase().includes("ruby")

return gem?.name?.toLowerCase().includes("ruby");

Available variables:

Variable	Use it for	Notes
`gem` or `gemItem`	Checking the gem being inserted.	Use this for name, rarity, flags, or subtype checks.
`hostItem` or `item`	Checking the receiving item.	Useful when the same gem should behave differently on weapons, armor, or other host items.
`actor`	Checking the owning actor.	This is most useful when the host item belongs to an actor instead of a world item.
`user`	Checking the current Foundry user.	Advanced use only. Most socket rules should not depend on the user.
`slot`	Inspecting the current slot data.	This is a slot snapshot, not the gem document itself.
`slotConfig`	Reading the slot's own configured fields.	Useful when your logic depends on the slot name, description, color, or flags already stored there.
`slotIndex`	Checking which slot is being targeted.	This is zero-based, so the first slot is `0`.
`source`	Inspecting workflow source data when provided.	Advanced use only. This may be `null` depending on how the insertion started.
`getProperty` and `hasProperty`	Safely reading deep data paths.	Use these when the field may not exist on every gem.
`deepClone`	Cloning context data before changing it in custom logic.	Most conditions do not need this helper.

Basic Condition Examples

These examples all assume the slot already passed the module's normal checks for gem identity, host compatibility, and socketability.

Example Filters

Search within this example list without affecting the rest of the page.

Search This Section

6 / 6 examples

Require a name fragment

Use this when a slot should accept only gems whose name contains a specific word such as Ruby, Rune, Frost, or Bloodstone.

Example Code

return gem?.name?.includes("Ruby");

Require a specific rarity

Use this when the slot should reserve itself for stronger gems and reject common or uncommon ones.

Example Code

return getProperty(gem, "system.rarity") === "rare";

Require minimum Intelligence

Use this when a gem should only be socketed by an actor with enough Intelligence to handle arcane or technical gems.

Example Code

return (actor?.system?.abilities?.int?.value ?? 0) >= 16;

Require both rarity and name

Use this for curated signature gems where the slot should only accept a named gem family at a specific power tier.

Example Code

return gem?.name?.includes("Ruby") && getProperty(gem, "system.rarity") === "rare";

Require an active effect on the actor

Use this when socketing should only work while the actor is under a specific buff, blessing, stance, or temporary state.

Example Code

return actor?.effects?.some?.((effect) => effect.name === "Arcane Focus" && !effect.disabled);

Require another gem already socketed

Use this when a slot should only unlock after the host item already contains a prerequisite gem.

Example Code

const sockets = getProperty(hostItem, "flags.sc-simple-sockets.sockets") ?? [];
return sockets.some((entry) => (entry?.gem?.name ?? entry?._gemData?.name) === "Ruby");

Writing Tips

Start with the simplest rule that solves the slot restriction.
Prefer getProperty(...) when a field may not exist on every gem.
Use slotIndex for position-based rules and gem for gem-data rules.
If a condition becomes hard to read, split the logic into several named checks inside the code block before returning the final result.
If the code is invalid or throws an error at runtime, the module blocks the gem and shows a warning instead of failing silently.

UI Feedback

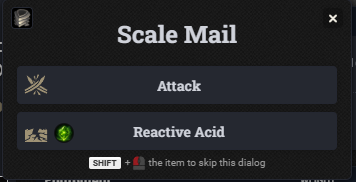

The module surfaces socket state outside the Sockets tab as well.

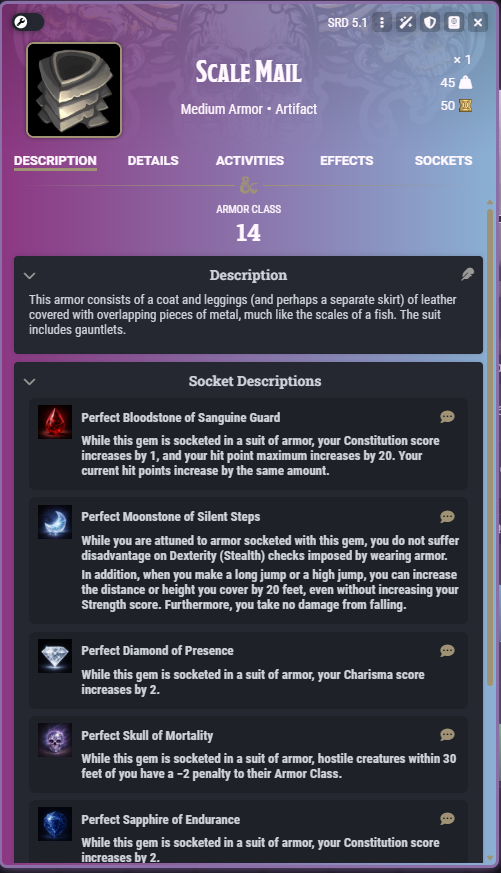

Socket Descriptions

Item sheets gain a Socket Descriptions block that can show empty-slot text or the inserted gem's description and send entries to chat.

1 / 4

This feedback appears on:

the standard dnd5e item sheet
Tidy5e Sheet item tabs and descriptions
actor inventory rows
item activity lists
the damage roll configuration dialog

API and Included Content

The module ships with included content and an exposed API.

Included from module.json:

one item compendium with socket-ready gem content
one macro compendium for socket workflows

Create Slots with the Included Macro

If you want to add sockets without opening each item sheet first, import a macro from the SC - Simple Sockets Macro compendium.

Current included macro examples include:

Add Socket Slot to Item
Add Conditional Socket Slot to Item

The standard add-slot workflow uses the same interactive helper exposed by the module API:

Run Add Socket Slot to Item from your hotbar or macro directory.
Click a supported item anywhere in the Foundry UI.
Confirm the prompt to add the new socket.

The workflow shows Click an item to add a socket. Press Esc to cancel. while selection is active.

Use Add Conditional Socket Slot to Item when you want the new slot to start with predefined rules such as a name, description, color, or slot condition.

addSocketInteractive(options) currently accepts these top-level options:

Option	Type	Default	What it does
`notifications`	`boolean`	`true`	Shows the selection prompt and the success, warning, or error notifications used by the interactive workflow.
`promptSlotConfig`	`boolean`	`false`	Opens the slot-configuration dialog before the socket is created. If it is disabled, the macro uses `slotConfig` as-is after validation.
`slotConfig`	`object`	`{}`	Preconfigures the new slot. Use this for default name, description, condition, color, visibility, or gem-removal behavior.
`cursorClass`	`string`	module default	Advanced override for the temporary CSS cursor class used while the macro waits for you to click an item.
`renderSheet`	`boolean`	`true`	Defined in the workflow defaults, but the current add-slot implementation does not read this field directly. No visible effect is confirmed in this path.

options.slotConfig accepts these fields:

Field	Type	Default	What it does
`name`	`string`	`""`	Sets the slot name. If left empty, the slot falls back to the module's normal empty-slot label.
`description`	`string`	`""`	Adds the empty-slot description shown before a gem is inserted.
`condition`	`string`	`""`	Adds the JavaScript slot condition used to decide whether a gem can enter that socket.
`color`	`string`	`""`	Applies a tint to the empty socket. Valid hex colors are normalized to uppercase `#RRGGBB`.
`hidden`	`boolean`	`false`	Marks the slot as hidden. This is accepted by the slot config object even though the interactive add-slot dialog does not currently expose a hidden toggle.
`deleteGemOnRemoval`	`boolean`	`false`	Makes this slot delete its gem when unsocketed, overriding the global removal behavior for that slot.

Example: create a slot that always deletes its gem when the gem is removed:

await game.modules.get("sc-simple-sockets")?.api?.macro?.addSocketInteractive({
  notifications: true,
  slotConfig: {
    deleteGemOnRemoval: true
  }
});

Because promptSlotConfig defaults to false, this version uses the provided slotConfig directly after validation.

The module API lives at:

game.modules.get("sc-simple-sockets")?.api

Current API surfaces:

game.modules.get("sc-simple-sockets")?.api?.sockets?.getItemSlots(itemOrUuid)
game.modules.get("sc-simple-sockets")?.api?.sockets?.getItemGems(itemOrUuid)
game.modules.get("sc-simple-sockets")?.api?.sockets?.removeGem(itemOrUuid, slotIndex)
game.modules.get("sc-simple-sockets")?.api?.sockets?.removeGemKeepingItem(itemOrUuid, slotIndex)

game.modules.get("sc-simple-sockets")?.api?.macro?.addSocketInteractive(options)
game.modules.get("sc-simple-sockets")?.api?.macro?.extractGemInteractive(options)
game.modules.get("sc-simple-sockets")?.api?.macro?.selectItemForSocket(options)
game.modules.get("sc-simple-sockets")?.api?.macro?.removeGemWithoutDeleting(itemOrUuid, slotIndex)

The socket API also exposes these hook names:

sc-simple-sockets.socketAdded
sc-simple-sockets.socketRemoved

If you want ready-made expansion content instead of building every gem by hand, see SC - More Gems.

Troubleshooting and Notes

Useful current behaviors and limits:

gems are still normal loot items, so gem identity starts from loot subtype rules instead of a new item type
container is intentionally excluded from the socketable item-type picker
if global socket-tab visibility is disabled, items that already have sockets keep their local socket-tab access
invalid slot-condition code blocks the gem and shows a warning instead of failing silently
replacing a gem removes the previous gem's transferred effects and mirrored activities before applying the new one

Troubleshooting checks:

if an item cannot receive sockets, verify its type is enabled in Configure Socketable Item Types
if an item is not recognized as a gem, verify its loot subtype is included in Configure Gem Loot Subtypes
if the Sockets tab is missing, check the global Enable Socket Tab on all items setting and then the per-item Enable Socket Tab toggle in Details
if a gem is rejected by one slot only, inspect that slot's Slot condition
if gem damage looks confusing in the roll dialog, change Gem damage layout in roll dialog and compare the four layouts
if you need deeper debugging, enable Debug trace logging in module settings and inspect the browser console

Client-side notes:

the module can show an automatic What's New popup after updates
Hide automatic What's New popup until next update controls whether that popup stays hidden after you acknowledge it
